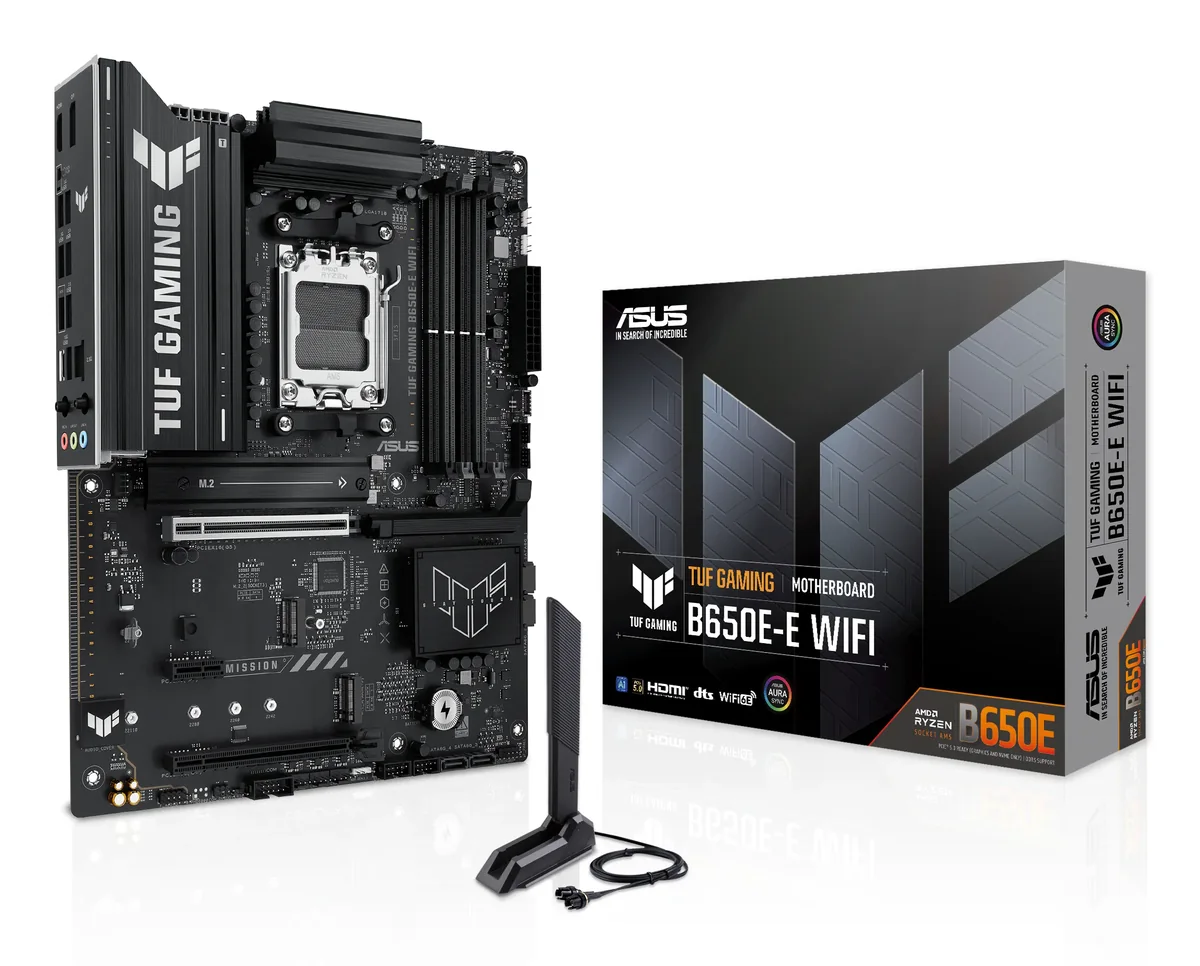

Asus TUF GAMING B650E-E WiFi 6E AM5 ATX -emolevy

Tekniset tiedot

12V power connector

Yes

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

Antenna included

Yes

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.3

Cables included

SATA

Chassis intrusion connector

Yes

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component for

PC

Cooling type

Passive

CPU fan connector

Yes

Depth

244 mm

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDMI ports quantity

1

Line-in

Yes

Mallinumero

90MB1LT0M0EAY0

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

AMD B650

Motherboard chipset family

AMD

Motherboard form factor

ATX

mSATA ports quantity

0

Number of chassis fan connectors

4

Number of COM connectors

1

Number of HDDs supported

4

Number of M.2 (M) slots

3

Number of memory slots

4

Number of RGB LED pin headers

3

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

4

Number of storage drives supported

7

On-board graphics card

No

Package depth

273 mm

Package height

68 mm

Package weight

1.78 kg

Package width

353 mm

Parallel processing technology support

Not supported

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Peripheral (Molex) power connectors (4-pin)

1

Processor manufacturer

AMD

Processor socket

Socket AM5

Product colour

Black

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out connector

Yes

Screws included

Yes

Supported memory types

DDR5-SDRAM

Supported processor sockets

Socket AM5

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

VGA (D-Sub) ports quantity

0

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Width

305 mm

WiFi-AP antenna jack

1

Windows operating systems supported

Windows 10 x64, Windows 11

EAN / GTIN

4711387992494
