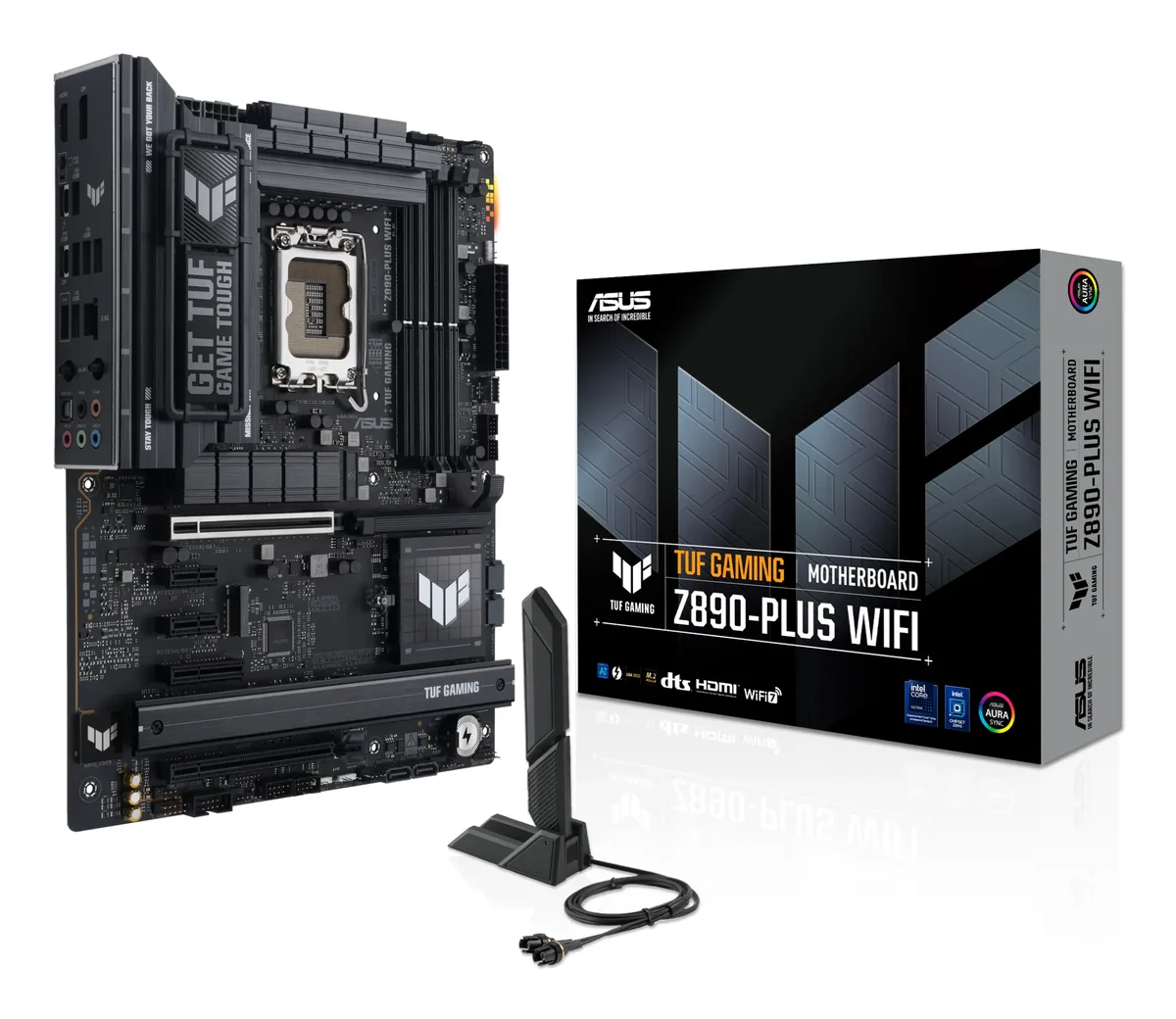

ASUS TUF GAMING Z890-PLUS WIFI Emolevy - Intel Z890 - Intel LGA1851 - DDR5 RAM - ATX

Tekniset tiedot

12V power connector

Yes

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC1220P

Audio output channels

7.1 channels

Back-to-BIOS button

Yes

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.4

Cables included

SATA

Chassis intrusion connector

Yes

Compatible processor series

Intel Core Ultra (Series 2)

Component for

PC

Cooling type

Passive

CPU fan connector

Yes

Depth

244 mm

DisplayPort version

1.4

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Line-in

Yes

Mallinumero

90MB1IQ0M0EAY0

Maximum internal memory

192 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Motherboard chipset

Intel Z890

Motherboard chipset family

Intel

Motherboard form factor

ATX

mSATA ports quantity

0

Number of chassis fan connectors

4

Number of COM connectors

1

Number of HDDs supported

4

Number of M.2 (M) slots

4

Number of memory slots

4

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

4

Number of storage drives supported

8

On-board graphics card

No

Package depth

273 mm

Package height

68 mm

Package weight

2.34 kg

Package width

353 mm

Parallel processing technology support

Not supported

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 1.x) slots

2

PCI Express x4 (Gen 4.x) slots

1

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Product colour

Black

Quick installation guide

Yes

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out port

Yes

Supported memory clock speed (max)

8600 MHz

Supported memory types

DDR5-SDRAM

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

Thunderbolt ports quantity

1

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

VGA (D-Sub) ports quantity

0

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Width

305 mm

WiFi-AP antenna jack

2

Windows operating systems supported

Windows 11

EAN / GTIN

4711387763926
