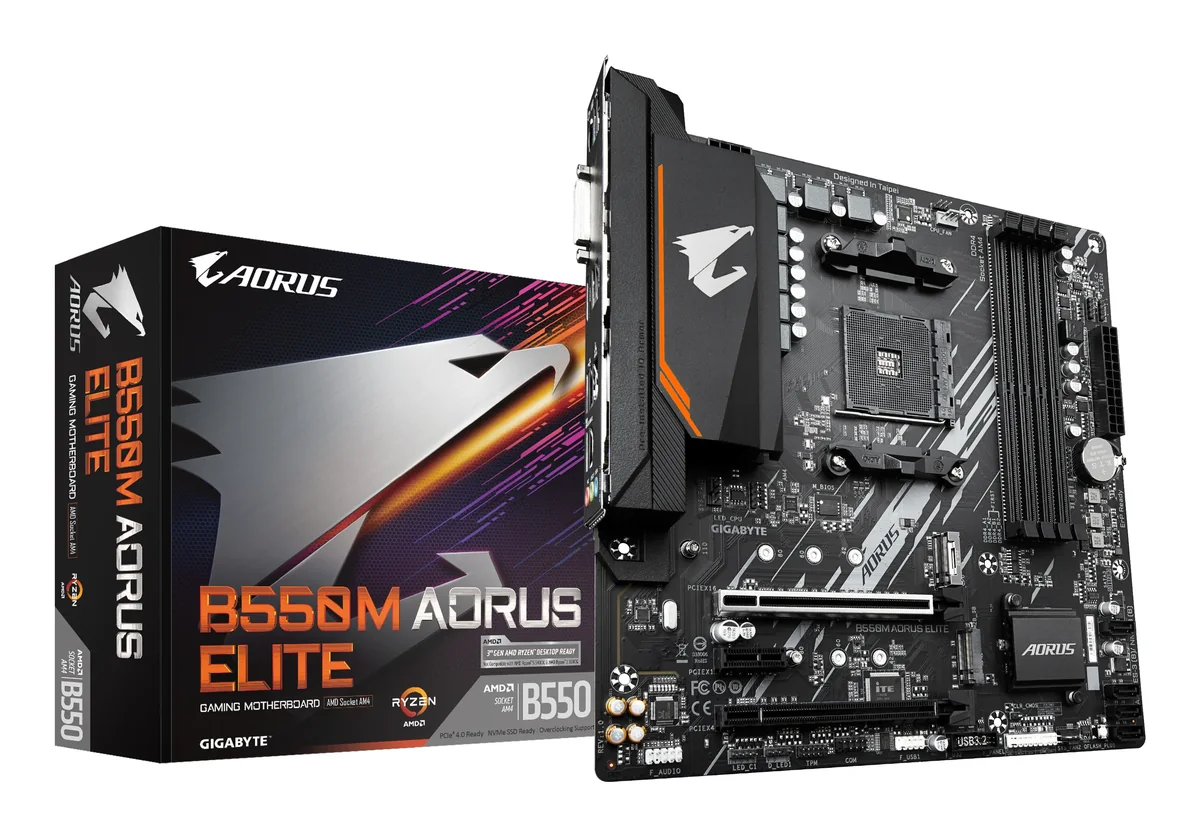

Gigabyte B550M AORUS ELITE AM4 mATX-emolevy

Tekniset tiedot

12V power connector

Yes

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

22110

2nd M.2 highest PCI Express generation

3.0

2nd M.2 largest key size

2280

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Clear CMOS jumper

Yes

Compatible processor series

AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series

Component for

PC

Cooling type

Passive

Country of origin

China

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DVI-D ports quantity

1

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

Harmonized System (HS) code

84733020

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8111H

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

B550MAORUSELITE

Maximum internal memory

128 GB

Maximum internal memory per slot

32 GB

Maximum number of SMP processors

1

Maximum resolution

4096 x 2160 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

AMD B550

Motherboard chipset family

AMD

Motherboard form factor

micro ATX

Number of battery cells

1

Number of chassis fan connectors

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of HDDs supported

4

Number of M.2 (M) slots

2

Number of memory slots

4

Number of RGB LED pin headers

5

Number of SATA III connectors

4

Number of storage drives supported

6

Number of water pump connectors

2

Package depth

265 mm

Package height

65 mm

Package weight

1.27 kg

Package width

265 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Power source type

ATX

Processor manufacturer

AMD

Processor socket

Socket AM4

Product colour

Brown

Products per shipping (inner) case

1 pc(s)

PS/2 ports quantity

1

RAID levels

0, 1, 10

RGB LED pin header

Yes

Screws included

Yes

Serial port headers

1

Supported memory clock speed (max)

4733 MHz

Supported memory clock speeds

4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz

Supported memory types

DDR4-SDRAM

Supported processor sockets

Socket AM4

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

EAN / GTIN

4719331809546
