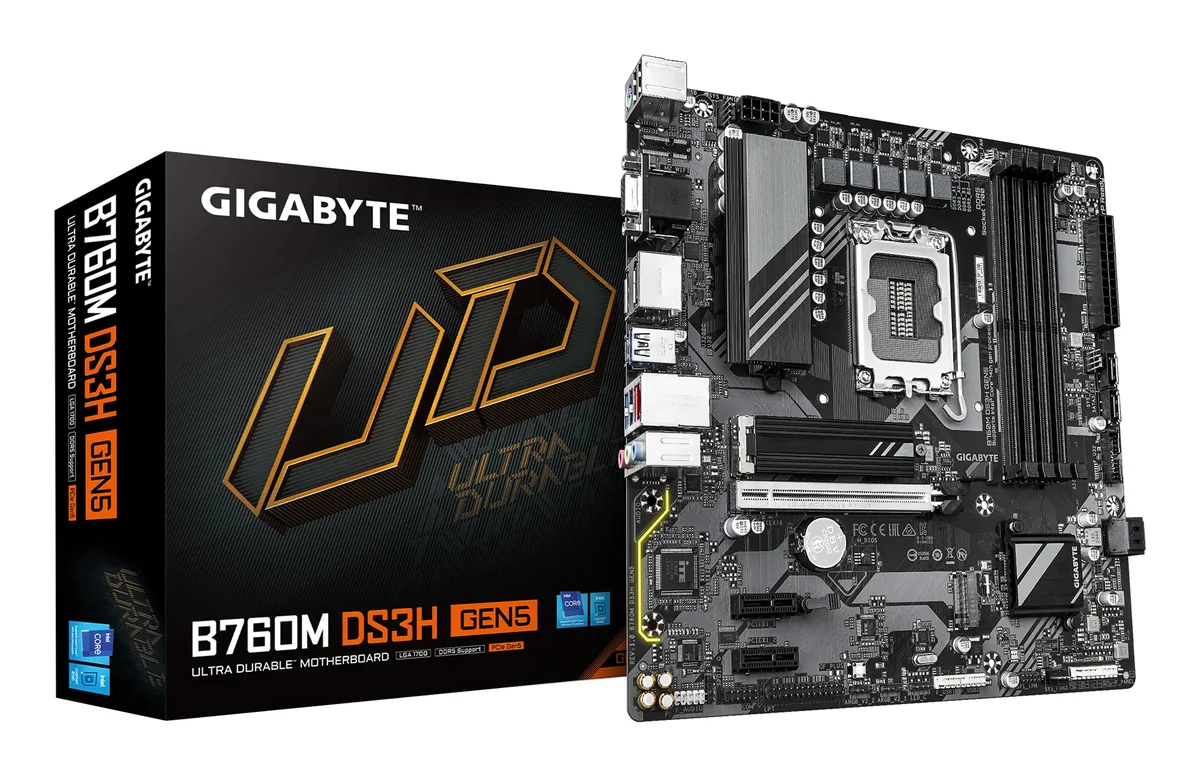

GIGABYTE B760M DS3H GEN5 Emolevy - Intel B760 - Intel LGA1700 - DDR5 RAM - Micro-ATX

Tekniset tiedot

12V power connector

Yes

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Bundled software

Norton® Internet Security (OEM version)

Clear CMOS jumper

Yes

Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold

Component for

PC

Cooling type

Passive

Country of origin

China

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

1.2

DisplayPorts quantity

2

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8125

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

B760MDS3HGEN5

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096 x 2304 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel B760 Express

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Number of battery cells

1

Number of chassis fan connectors

3

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of HDDs supported

4

Number of M.2 (M) slots

2

Number of memory slots

4

Number of RGB LED pin headers

3

Number of SATA III connectors

4

Number of storage drives supported

6

Package depth

265 mm

Package height

54 mm

Package weight

1.04 kg

Package width

265 mm

Parallel connector

Yes

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1700

Product colour

Dark brown

Products per shipping (inner) case

1 pc(s)

PS/2 ports quantity

1

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out connector

Yes

Screws included

Yes

Serial port headers

1

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1700

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

EAN / GTIN

4719331872793
