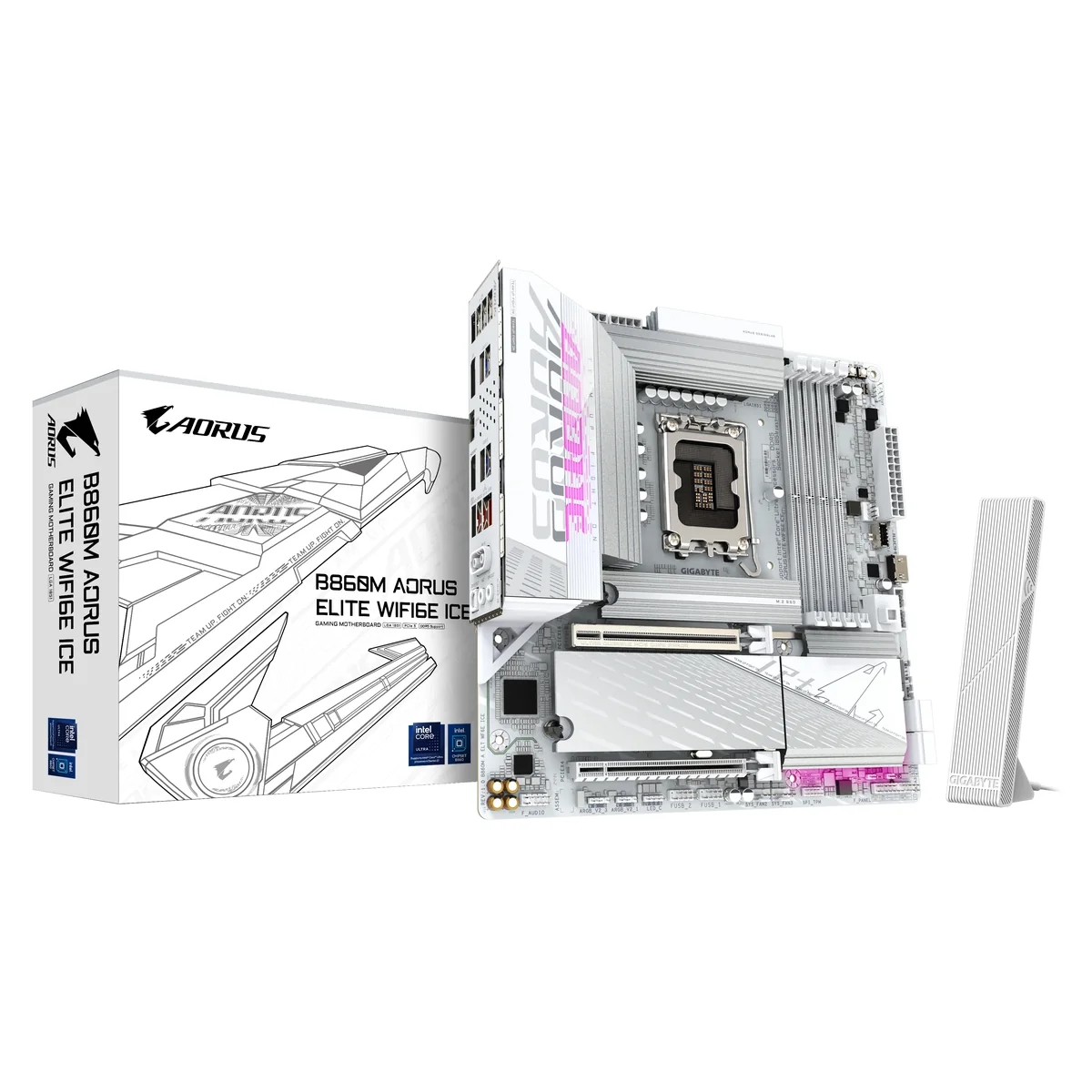

GIGABYTE B860M AORUS ELITE WIFI6E ICE Emolevy - Intel B860 - Intel LGA1851 - DDR5 RAM - Micro-ATX

Tekniset tiedot

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2580

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

25110

ACPI version

5.0

Antenna included

Yes

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.3

Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software

Clear CMOS jumper

Yes

Compatible processor series

Intel® CoreTM Ultra (Series 1), Intel Core Ultra (Series 2)

Component for

PC

Cooling type

Passive

Country of origin

China

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

Digital audio optical out

1

DirectX version

12.0

DisplayPort version

2.1

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8125

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

B860MAORUSELITEWF6EICE

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096 x 2160 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Motherboard chipset

Intel B860

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Number of battery cells

1

Number of chassis fan connectors

4

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of HDDs supported

4

Number of M.2 (M) slots

3

Number of memory slots

4

Number of RGB LED pin headers

4

Number of SATA III connectors

4

Number of storage drives supported

7

Number of water pump connectors

2

Package depth

268 mm

Package height

68 mm

Package weight

1.9 kg

Package width

270 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Product colour

White

Products per shipping (inner) case

1 pc(s)

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out port

Yes

Screws included

Yes

Supported memory clock speed (max)

9200 MHz

Supported memory clock speeds

5600,6400,9200 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1851

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

EAN / GTIN

4719331867164
