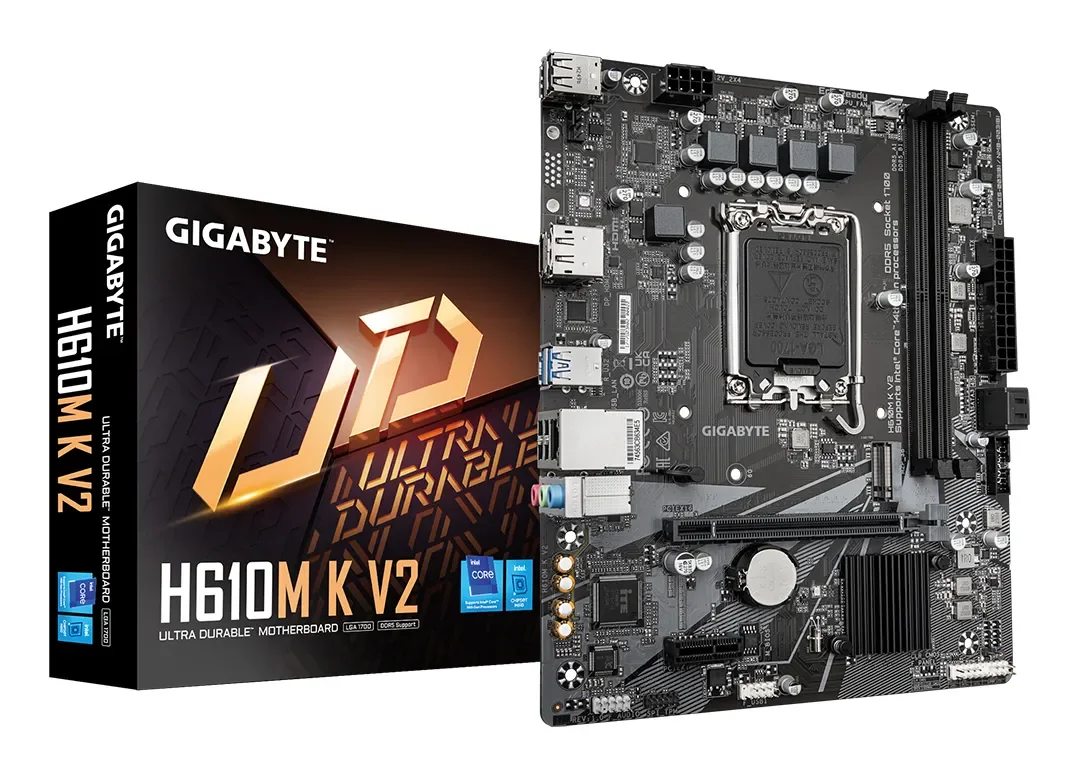

Gigabyte H610M K V2 DDR5 LGA1700 mATX -emolevy

Tekniset tiedot

1st M.2 highest PCI Express generation

3.0

1st M.2 largest key size

2280

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Clear CMOS jumper

Yes

Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold

Component for

PC

Cooling type

Passive

CPU fan connector

Yes

Depth

185 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

1.2

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8111H

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

H610MKV2

Maximum internal memory

128 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096 x 2160 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel H610

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Number of battery cells

1

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of HDDs supported

2

Number of M.2 (M) slots

1

Number of memory slots

2

Number of SATA III connectors

2

Number of storage drives supported

3

Package depth

235 mm

Package height

52 mm

Package weight

723 g

Package width

265 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1700

Product colour

Dark brown

Products per shipping (inner) case

1 pc(s)

Screws included

Yes

Supported memory clock speed (max)

5600 MHz

Supported memory clock speeds

5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1700

Supported storage drive interfaces

M.2, PCI Express 3.0, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

Warranty period

3 year(s)

Weight

650 g

Wi-Fi

No

Width

226 mm

Windows operating systems supported

Windows 10 x64, Windows 11 x64

EAN / GTIN

4719331860134
