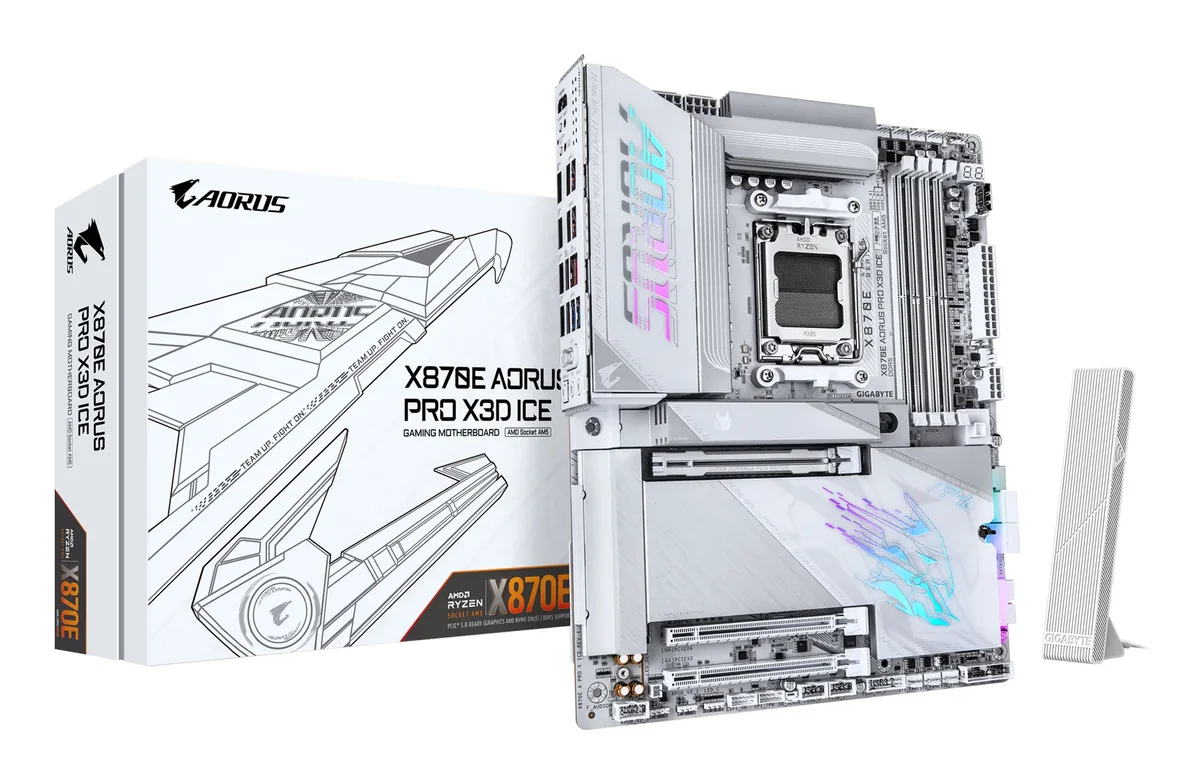

Gigabyte X870E AORUS PRO ICE WiFi 7 AM5 ATX -emolevy

Tekniset tiedot

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

4th M.2 highest PCI Express generation

4.0

4th M.2 largest key size

22110

ACPI version

5.0

Antenna included

Yes

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC1220-VB

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

512 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.4

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component for

PC

Cooling type

Passive

Country of origin

Taiwan

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

Digital audio optical out

1

DirectX version

12.0

DisplayPort version

1.4

DVI-D ports quantity

0

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8126

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

X870EAPROXICE

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096 x 2304 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Motherboard chipset

AMD X870E

Motherboard chipset family

AMD

Motherboard form factor

ATX

Number of battery cells

1

Number of chassis fan connectors

6

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of HDDs supported

4

Number of M.2 (M) slots

4

Number of memory slots

4

Number of noise detection headers

1

Number of RGB LED pin headers

4

Number of SATA III connectors

4

Number of storage drives supported

8

Number of temperature sensor headers

2

Number of water pump connectors

3

Package depth

310 mm

Package height

92 mm

Package weight

4.3 kg

Package width

340 mm

Parallel processing technology support

Not supported

PC health monitoring

CPU, Fan, Temperature, Voltage, Water cooling

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Power source type

ATX

Processor manufacturer

AMD

Processor socket

Socket AM5

Product colour

White

Products per shipping (inner) case

1 pc(s)

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out port

Yes

Screws included

Yes

Supported memory clock speed (max)

9000 MHz

Supported memory clock speeds

9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

Socket AM5

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

TPM connector

Yes

Unbuffered memory

Yes

EAN / GTIN

4719331876487
