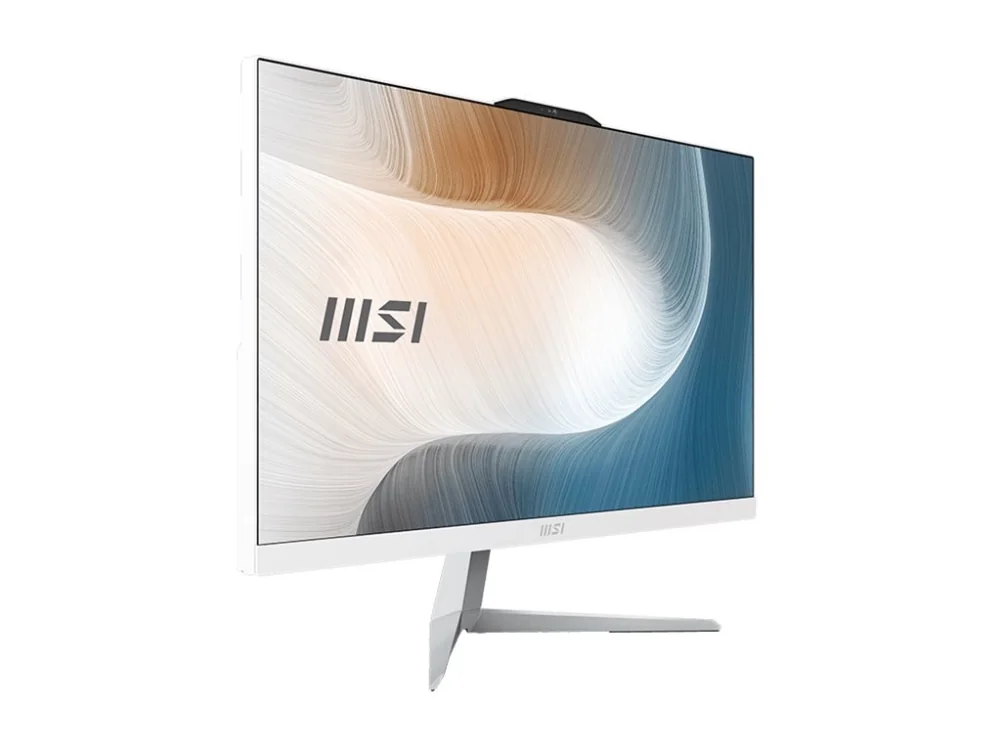

MSI Modern AM242 1M 1220EU

Tekniset tiedot

AC adapter power

120 W

Anti-glare screen

Yes

Audio chip

Realtek ALC256

Bluetooth

Yes

Bluetooth version

5.3

Built-in camera

Yes

Built-in speaker(s)

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Certification

FCC, CB/CE, UL & CUL, VCCI, RCM

Combo headphone/mic port

Yes

Discrete graphics card

No

Discrete graphics card model

Not available

Display brightness

250 cd/m2

Display diagonal

60.5 cm (23.8")

Display resolution

1920 x 1080 pixels

Efficient-core base frequency

0.9 GHz

Efficient-core Max Turbo Frequency

3.8 GHz

Efficient cores

8

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

HD type

Full HD

HDMI ports quantity

2

Internal memory

8 GB

Internal memory type

DDR5-SDRAM

Kapasiteetti

8GB

M.2 SSD size

2280 (22 x 80 mm)

Mallinumero

MODERNAM2421M1220EU

Market positioning

Business

Maximum internal memory

64 GB

Maximum turbo power

55 W

Memory clock speed

5600 MHz

Memory form factor

DIMM/SO-DIMM

Memory layout (slots x size)

1 x 8 GB

Memory slots

2

Memory slots type

SO-DIMM

Microphone in

Yes

Motherboard chipset

Intel SoC

Number of speakers

2

Number of SSDs installed

1

NVMe

Yes

On-board GPU manufacturer

Intel

On-board graphics card

Yes

On-board graphics card family

Intel® Graphics

On-board graphics card model

Intel® Graphics

Operating relative humidity (H-H)

0 - 85%

Operating system installed

Windows 11 Pro

Operating temperature (T-T)

0 - 35 °C

Optical drive type

No

Package depth

170 mm

Package height

493 mm

Package width

631 mm

Panel mounting interface

75 x 75 mm

Panel type

IPS

Performance-core base frequency

1.4 GHz

Performance-core Max Turbo Frequency

5 GHz

Performance cores

2

Pixel pitch

0.2745 x 0.2745 mm

Processor base power

15 W

Processor boost frequency

5 GHz

Processor cache

12 MB

Processor cache type

Smart Cache

Processor cores

10

Processor family

Intel Core 5

Processor generation

Intel Core (Series 1)

Processor manufacturer

Intel

Processor model

120U

Processor threads

12

Product colour

White

Product type

All-in-One PC

RMS rated power

5 W

SSD capacity

512 GB

SSD form factor

M.2

Storage media

SSD

Storage relative humidity (H-H)

0 - 90%

Storage temperature (T-T)

-20 - 60 °C

Tilt adjustment

Yes

Tilt angle range

-5 - 15°

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Total SSDs capacity

512 GB

Total storage capacity

512 GB

Touchscreen

No

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

2

USB4 Gen 3x2 ports quantity

0

VESA mounting

Yes

Warranty period

2 year(s)

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

WLAN controller manufacturer

Intel

WLAN controller model

Intel Wi-Fi 6E AX211

EAN / GTIN

4711377232043
