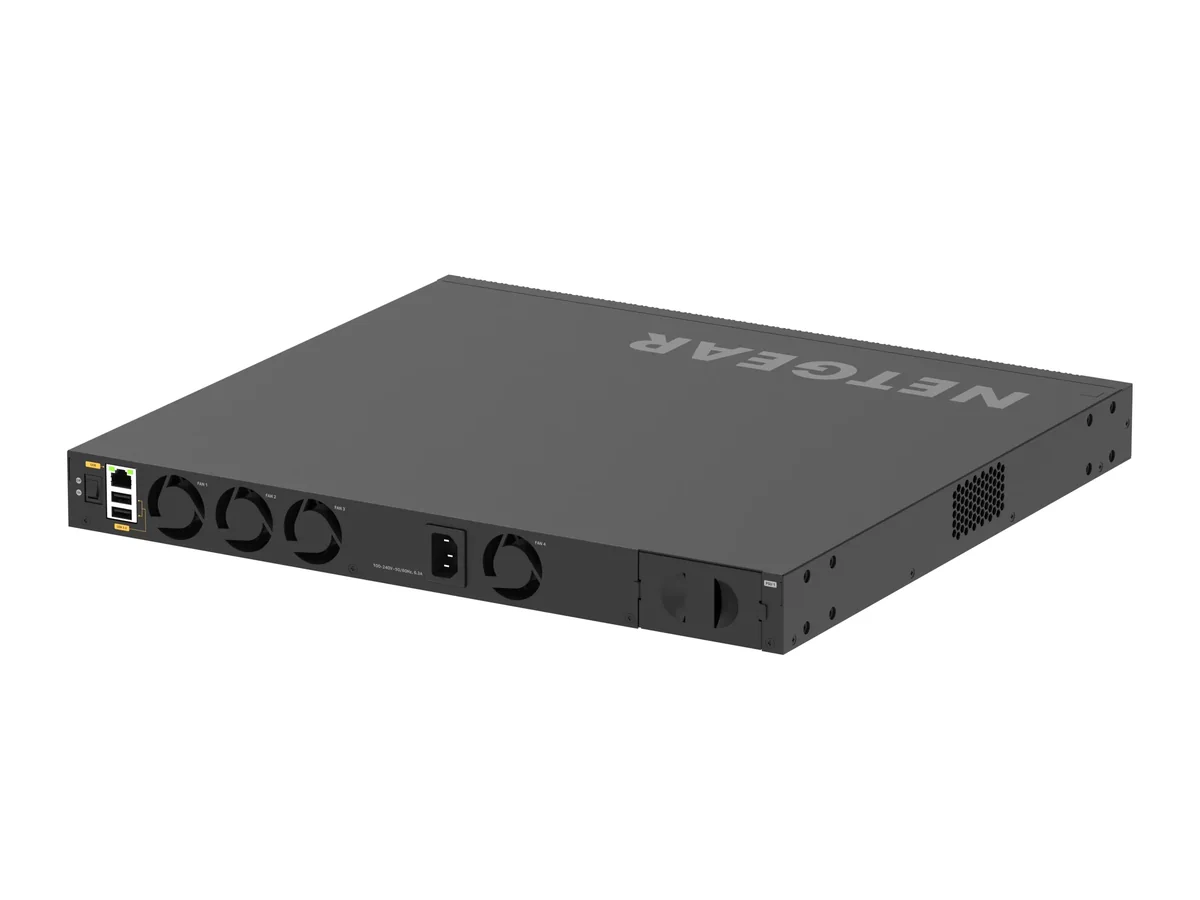

Netgear M4350 Series M4350-24F4V

Tekniset tiedot

10G support

Yes

6to4 tunnel

Yes

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Access Control List (ACL)

Yes

Access Control List (ACL) egress

1023

Access Control List (ACL) ingress

511

Airflow direction

Front-to-back airflow

ARP inspection

Yes

Authentication

Guest VLAN, MAC-based authentication

Authentication type

RADIUS, TACACS+

Basic switching RJ-45 Ethernet ports quantity

0

Basic switching RJ-45 Ethernet ports type

No

BPDU filtering/protection

Yes

Broadcast storm control

Yes

Built-in processor

Yes

Cables included

AC, USB Type-C

Compliance certificates

BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)

Console port

RJ-45

Depth

400 mm

DHCP features

DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping

DoS attack prevention

Yes

Flash memory

512 MB

Flow control support

Yes

Form factor

1U

Full duplex

Yes

GARP VLAN Registration Protocol (GVRP)

Yes

Heat dissipation

374.6 BTU/h

Height

43.2 mm

IGMP proxy

Yes

IGMP snooping

Yes

Included power plug types

EU, NA, UK

Input current

6.3 A

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

Internal memory

2048 MB

IPv4 routes

512

IPv6 routes

256

Jumbo frames

12000

Jumbo frames support

Yes

Latency (1 Gbps)

1.06 μs

Latency (10 Gbps)

0.63 μs

LED indicators

Yes

Link aggregation

Yes

Loop protection

Yes

MAC address filtering

Yes

MAC address table

16000 entries

Mallinumero

XSM4328FV100NES

Management protocols

SNMP V1, V2, V3

Mean time between failures (MTBF)

778741 h

Memory type

DDR4-SDRAM

Multicast Listener Discovery (MLD) snooping

Y

Multicast support

Yes

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ak, IEEE 802.3bz, IEEE 802.3u

Noise level

61.8 dB

Non-operating altitude

0 - 3000 m

Number of VLANs

4093

Operating altitude

0 - 3000 m

Operating relative humidity (H-H)

0 - 90%

Operating temperature (T-T)

0 - 50 °C

Packet buffer memory

32 MB

Password protection

Yes

Policy-based routing

Yes

Power connector

AC-in jack

Power consumption (typical)

119.3 W

Power over Ethernet (PoE)

No

Power source

AC

Power supply

240 W

Power supply included

Yes

Processor frequency

1800 MHz

Processor model

ARM Cortex-A57

Product colour

Black

Quality of Service (QoS) support

Yes

Queue scheduling algorithms

Strict Priority Queue (SPQ), Weighted random early detection (WRED)

Rack mount kit

Yes

Rack mounting

Yes

Rate limiting

Yes

Root protection

Yes

Routing protocols

OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2

sFlow

Yes

SFP+ module slots quantity

24

SFP28 ports quantity

4

Spanning tree protocol

Yes

Stackable

Yes

Static port security

Yes

Static route

Yes

Storage relative humidity (H-H)

0 - 95%

Storage temperature (T-T)

-20 - 70 °C

Store-and-forward

Yes

Sustainability compliance

Yes

Switch layer

L3

Switch type

Managed

Switching capacity

680 Gbit/s

Throughput

505.92 Mpps

USB 2.0 ports quantity

2

User guide

Yes

Virtual LAN features

MAC address-based VLAN, Private VLAN, Voice VLAN

VLAN support

Yes

Web-based management

Yes

Weight

6.25 kg

EAN / GTIN

606449161397
