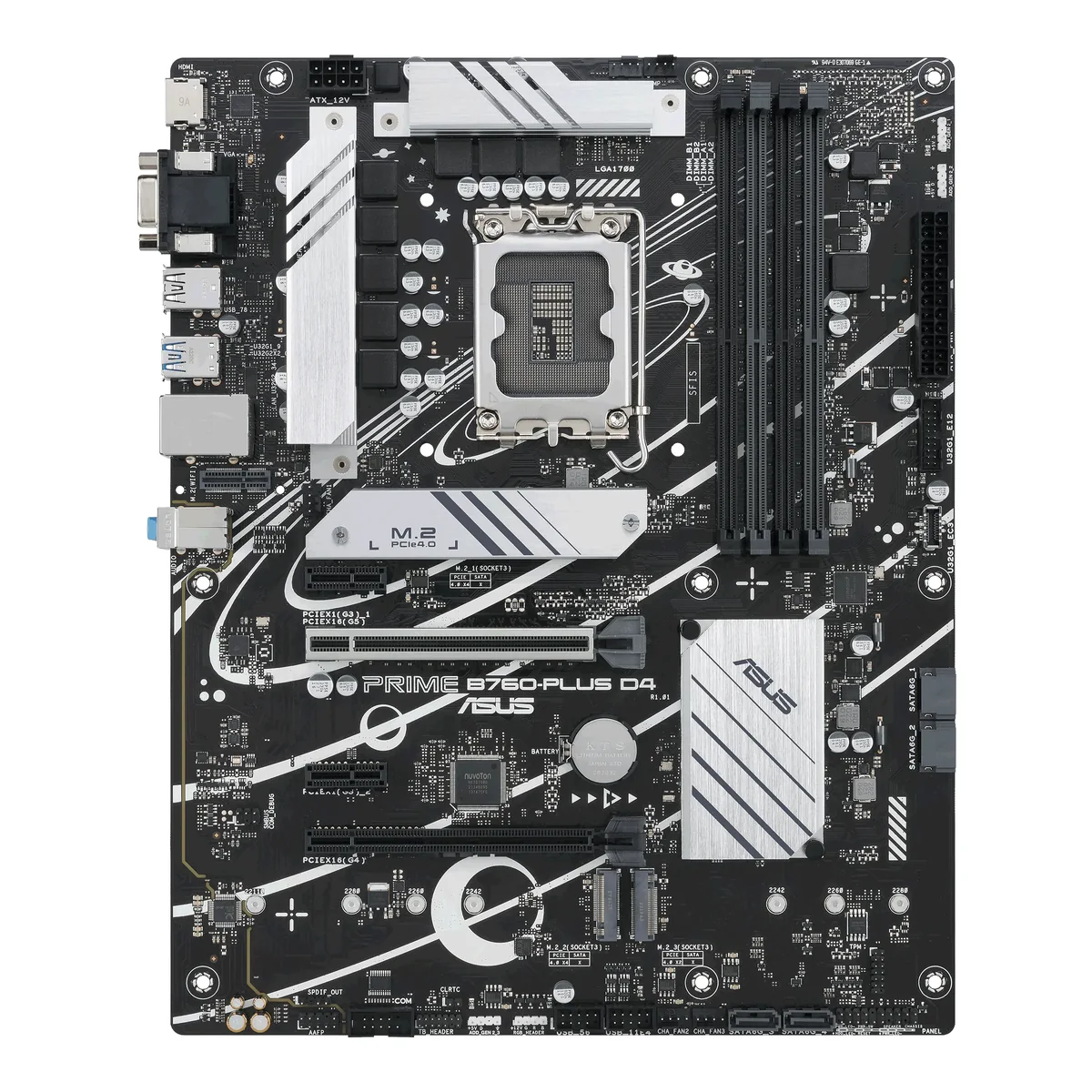

ASUS - Emolevy - ATX - LGA1700-asennuspaikka - sisäinen grafiikka (CPU tarvitaan) - HD Audio (8-kanavainen)

Tekniset tiedot

12V power connector

Yes

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Cables included

SATA

Compatible processor series

Intel® Celeron®, Intel® CoreTM i3, Intel® CoreTM i5, Intel® CoreTM i7, Intel® CoreTM i9, Intel® Pentium® Gold

Component for

PC

Cooling type

Passive

CPU fan connector

Yes

Depth

244 mm

DisplayPort version

1.4

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Line-in

Yes

Mallinumero

PRIMEB760PLUSD4

Maximum internal memory

128 GB

Maximum number of SMP processors

1

Memory channels

Dual-channel

Memory slots type

DIMM

Motherboard chipset

Intel B760

Motherboard chipset family

Intel

Motherboard form factor

ATX

Number of chassis fan connectors

3

Number of COM connectors

1

Number of HDDs supported

4

Number of M.2 (E) slots

1

Number of M.2 (M) slots

3

Number of memory slots

4

Number of SATA III connectors

4

Number of storage drives supported

7

Package depth

266 mm

Package height

53 mm

Package weight

1.16 kg

Package width

328 mm

Parallel processing technology support

Not supported

PCI Express x1 (Gen 3.x) slots

2

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

Peripheral (Molex) power connectors (4-pin)

1

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1700

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out connector

Yes

Supported memory clock speed (max)

5066 MHz

Supported memory clock speeds

5066,5000,4800,4600,4400,4266,4000,3733,3600,3466,3400,3333,3200,3000,2933,2800,2666,2400,2133 MHz

Supported memory types

DDR4-SDRAM

Supported processor sockets

LGA 1700

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

User guide

Yes

VGA (D-Sub) ports quantity

1

Wi-Fi

No

Width

305 mm

Windows operating systems supported

Windows 10, Windows 11

EAN / GTIN

4711081970309
