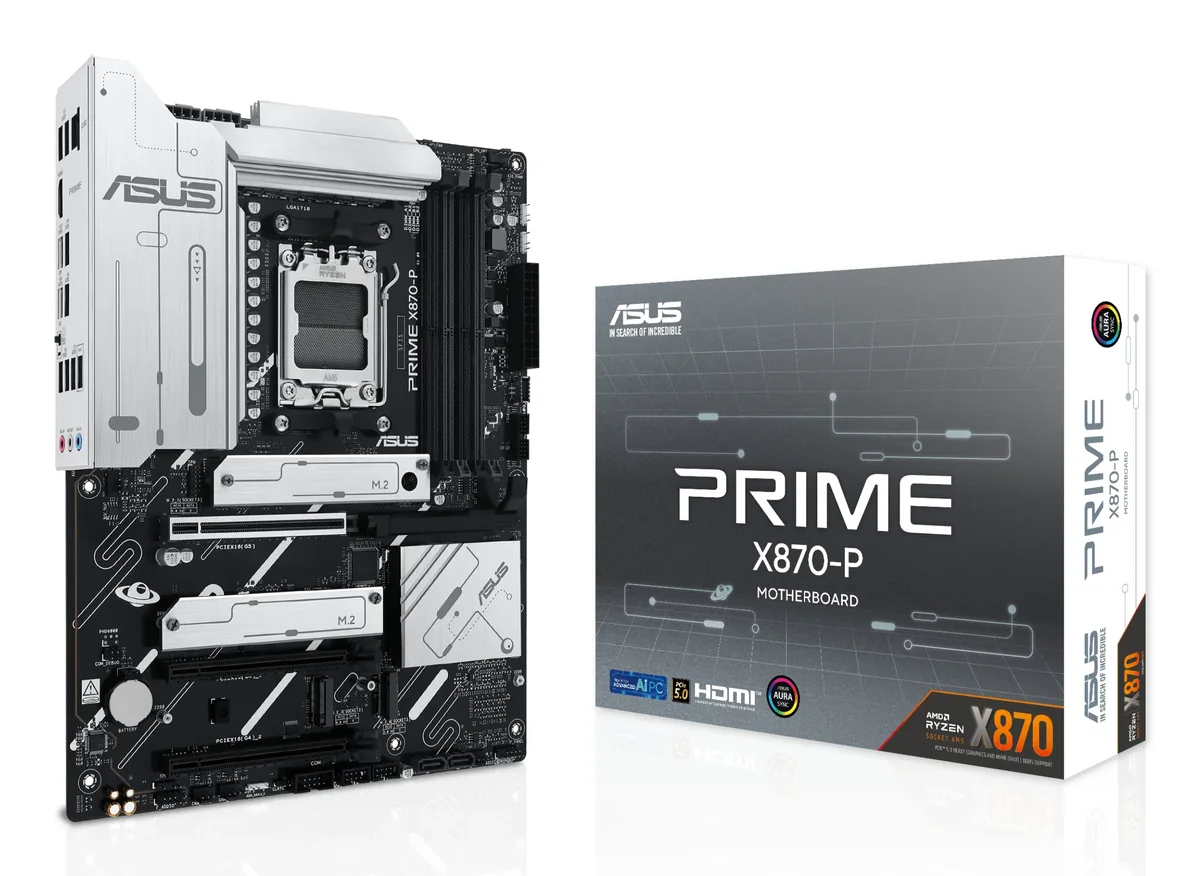

ASUS PRIME X870-P, AMD, Sokkel AM5, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7, AMD Ryzen 9 7th Gen, AMD Ryzen 9 8th Gen, AMD..., Sokkel AM5, DDR5-SDRAM, 192 GB

Tekniset tiedot

12V power connector

Yes

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

Back-to-BIOS button

Yes

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Cables included

SATA

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component for

PC

Cooling type

Passive

CPU fan connector

Yes

Depth

244 mm

DisplayPort version

1.4a

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

HDMI ports quantity

1

HDMI version

2.1

Height

48 mm

Kapasiteetti

192GB

Line-in

Yes

Mallinumero

90MB1IT0M0EAY0

Maximum internal memory

192 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

AMD X870

Motherboard chipset family

AMD

Motherboard form factor

ATX

mSATA ports quantity

0

Number of chassis fan connectors

4

Number of COM connectors

1

Number of HDDs supported

2

Number of M.2 (M) slots

4

Number of memory slots

4

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

2

Number of storage drives supported

6

On-board graphics card

No

Package depth

273 mm

Package height

68 mm

Package weight

1.5 kg

Package width

353 mm

Parallel processing technology support

Not supported

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

Power source type

ATX

Processor manufacturer

AMD

Processor socket

Socket AM5

Product colour

Black

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

Supported memory clock speed (max)

8000 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

Socket AM5

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

Top Wi-Fi standard

Not available

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB4 Gen 2x2 ports quantity

2

VGA (D-Sub) ports quantity

0

Weight

1.44 kg

Wi-Fi

No

Width

305 mm

Windows operating systems supported

Windows 10, Windows 11

EAN / GTIN

4711387723036
