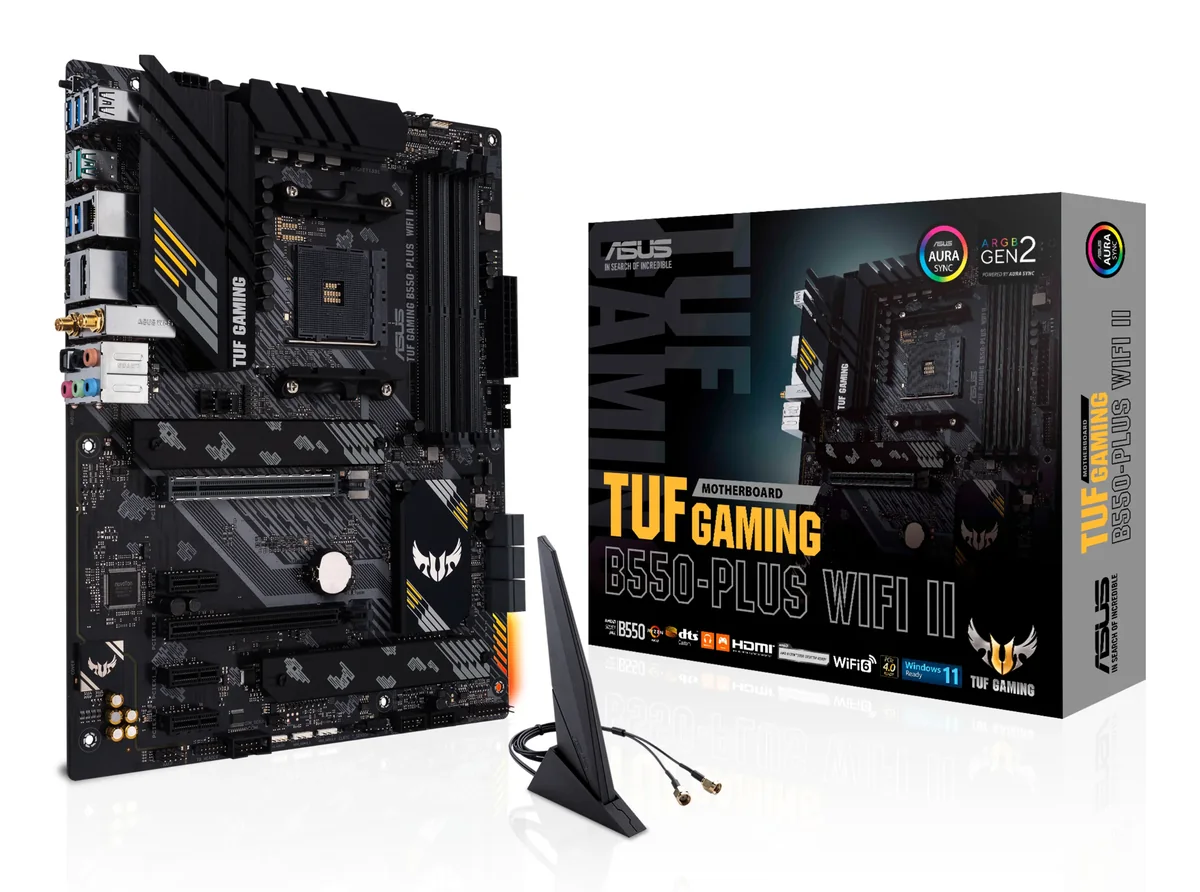

ASUS TUF PELI B550-PLUS WIFI II Emolevy - AMD B550 - AMD AM4 - DDR4 RAM - ATX

Tekniset tiedot

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.2

Cables included

SATA

Compatible processor series

AMD Ryzen 3000 Series

Component for

PC

CPU fan connector

Yes

Depth

244 mm

DisplayPorts quantity

1

Drivers included

Yes

DVI-D ports quantity

0

DVI-I ports quantity

0

ECC сompatibility

ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Harmonized System (HS) code

84733020

HDMI ports quantity

1

Headphone outputs

1

Height

75 mm

Line-in

Yes

Mallinumero

90MB19U0M0EAY0

Maximum internal memory

128 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Mini PCI Express (Gen 1.x) slots

0

Mini PCI Express (Gen 2.x) slots

0

Mini PCI Express slot (full length)

0

Mini PCI Express slot (half-length)

0

Mini PCI Express slots

0

Motherboard chipset

AMD B550

Motherboard chipset family

AMD

Motherboard form factor

ATX

mSATA ports quantity

0

Number of chassis fan connectors

3

Number of COM connectors

1

Number of displays supported

2

Number of M.2 (M) slots

2

Number of memory slots

4

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

6

Number of storage drives supported

8

On-board graphics card

No

Packaging content

2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide

Parallel processing technology support

Not supported

PCI Express OCuLink connectors (NVMe support)

0

PCI Express x1 (Gen 2.x) slots

0

PCI Express x1 (Gen 3.x) slots

3

PCI Express x1 (Gen 4.x) slots

0

PCI Express x1 slots

0

PCI Express x16 (Gen 2.x) slots

0

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots

0

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

0

PCI Express x16 slots

0

PCI Express x4 (Gen 1.x) slots

0

PCI Express x4 (Gen 2.x) slots

0

PCI Express x4 (Gen 4.x) slots

0

PCI Express x4 slots

0

PCI Express x8 (Gen 1.x) slots

0

PCI Express x8 slots

0

PCI slots

0

PCI-X slots

0

Processor manufacturer

AMD

Processor socket

Socket AM4

Product colour

Black

PS/2 ports quantity

0

RAID levels

0, 1, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out port

Yes

Supported memory clock speeds

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4800,4866 MHz

Supported memory types

DDR4-SDRAM

Supported processor sockets

Socket AM4

Supported storage drive interfaces

M.2, SATA

Supported storage drive types

HDD & SSD

Thunderbolt headers

1

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 3.2 Gen 2x2 connectors

0

USB 3.2 Gen 2x2 Type-C ports quantity

0

USB connector type

USB Type-A, USB Type-C

USB4 Gen 2x2 ports quantity

0

EAN / GTIN

4711081338413
