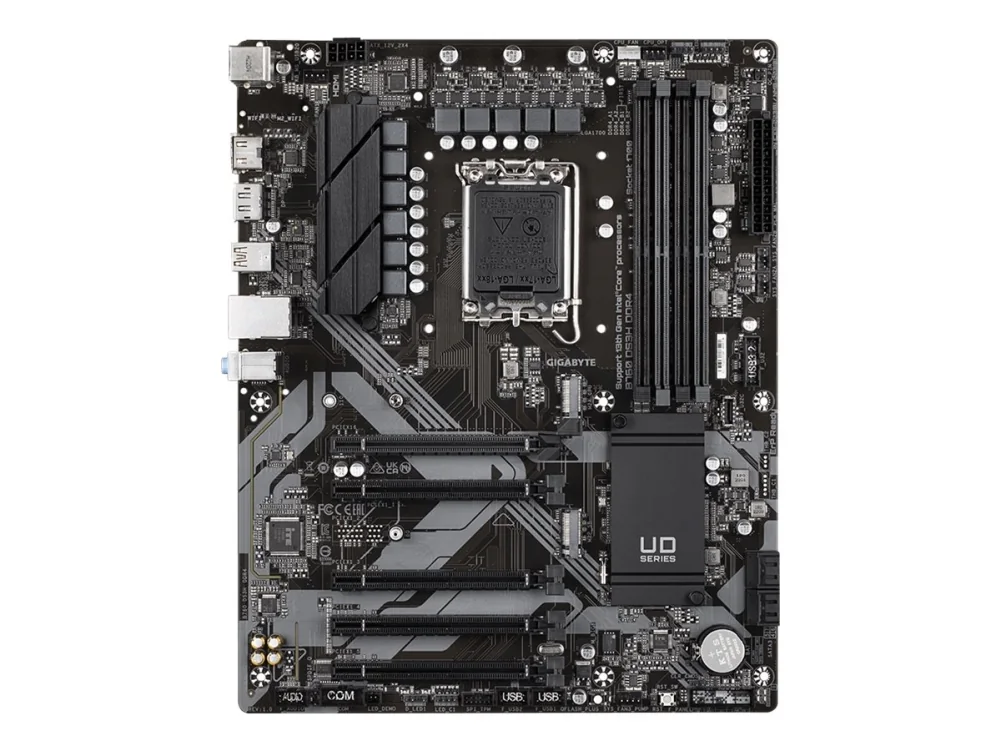

GIGABYTE B760 DS3H DDR4 Emolevy - Intel B760 - Intel LGA1700 - DDR4 RAM - ATX

Tekniset tiedot

12V power connector

Yes

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Bundled software

Norton Internet Security

Cables included

SATA

Clear CMOS jumper

Yes

Compatible processor series

Intel® Celeron®, Intel® CoreTM i3, Intel® CoreTM i5, Intel® CoreTM i7, Intel® CoreTM i9, Intel® Pentium® Gold

Component for

PC

Country of origin

China

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

1.2

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.0

Headphone outputs

3

Height

35 mm

Lithium weight per battery

0.07 g

Mallinumero

B760DS3HDDR4

Maximum internal memory

128 GB

Maximum internal memory supported by processor

128 GB

Maximum resolution

4096 x 2304 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel B760 Express

Motherboard chipset family

Intel

Motherboard form factor

ATX

Number of battery cells

1

Number of HDDs supported

4

Number of M.2 (M) slots

2

Number of memory slots

4

Number of SATA III connectors

4

Number of storage drives supported

6

Package depth

270 mm

Package height

80 mm

Package weight

1.31 kg

Package width

335 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x16 slots

5

Processor manufacturer

Intel

Processor socket

LGA 1700

Products per shipping (inner) case

1 pc(s)

PS/2 ports quantity

1

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out connector

Yes

Serial port headers

1

Supported memory clock speed (max)

5333 MHz

Supported memory clock speeds

2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory types

DDR4-SDRAM

Supported processor sockets

LGA 1700

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Total number of SATA connectors

4

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB connector type

USB Type-A, USB Type-C

VGA (D-Sub) ports quantity

0

Warranty period

3 year(s)

Wi-Fi

No

Width

305 mm

Windows operating systems supported

Windows 10 x64, Windows 11 x64

EAN / GTIN

4719331850746
