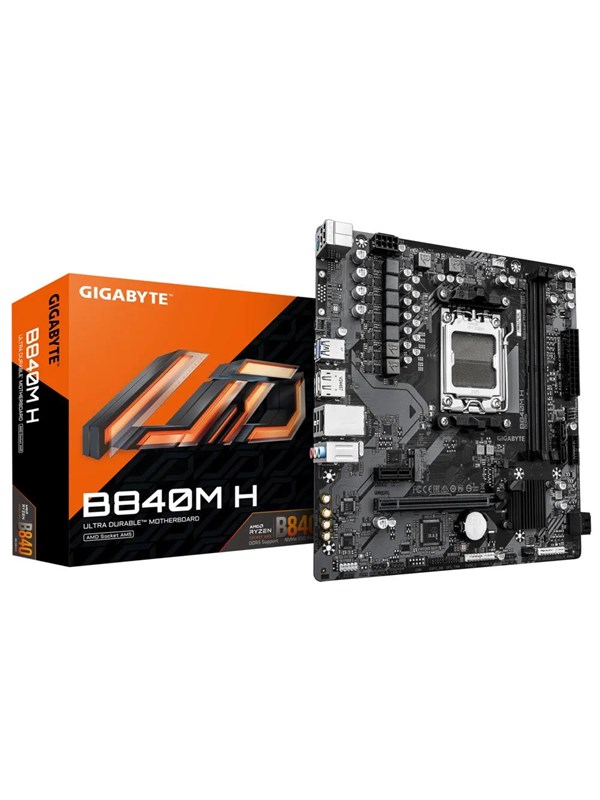

Gigabyte B840M H AM5 mATX -emolevy

Tekniset tiedot

12V power connector

Yes

1st M.2 highest PCI Express generation

4.0

1st M.2 largest key size

2580

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC897

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS flashback button

Yes

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bundled software

Norton® Internet Security (OEM version)

Clear CMOS jumper

Yes

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component for

PC

Cooling type

Passive

CPU fan connector

Yes

Depth

225 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

1.4

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDCP version

2.3

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8111H

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

B840MH

Maximum internal memory

128 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096 x 2160 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

AMD B840

Motherboard chipset family

AMD

Motherboard form factor

micro ATX

Number of battery cells

1

Number of chassis fan connectors

2

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of HDDs supported

4

Number of M.2 (M) slots

1

Number of memory slots

2

Number of RGB LED pin headers

3

Number of SATA III connectors

4

Number of storage drives supported

5

Package depth

265 mm

Package height

54 mm

Package weight

941 g

Package width

265 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Power source type

ATX

Processor manufacturer

AMD

Processor socket

Socket AM5

Product colour

Dark brown

Products per shipping (inner) case

1 pc(s)

PS/2 ports quantity

1

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

Screws included

Yes

Supported memory clock speed (max)

7200 MHz

Supported memory clock speeds

7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

Socket AM5

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

VGA (D-Sub) ports quantity

0

Warranty period

3 year(s)

Weight

880 g

EAN / GTIN

4719331877880
