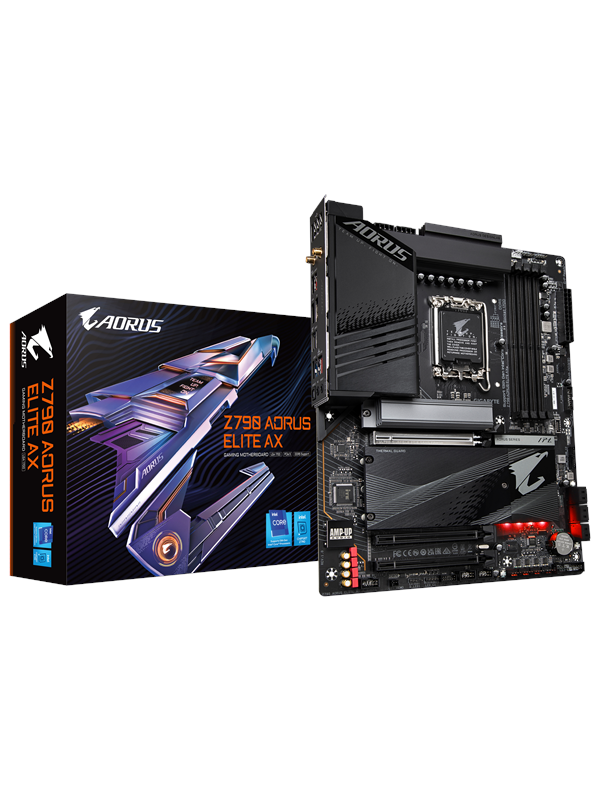

Gigabyte Z790 Aorus Elite Ax Emolevy Intel Z790 Lga 1700 Atx Lga 1700 Atx Emolevyt

Tekniset tiedot

12V power connector

Yes

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.3

Bundled software

Norton Internet Security

Cables included

SATA

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Compatible processor series

Intel® Celeron®, Intel® CoreTM i3, Intel® CoreTM i5, Intel® CoreTM i7, Intel® CoreTM i9, Intel® Pentium® Gold

Component for

PC

Country of origin

China

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

1.2

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.0

Headphone outputs

2

Height

35 mm

Lithium weight per battery

0.07 g

Mallinumero

Z790AORUSELITEAX

Maximum internal memory

192 GB

Maximum internal memory supported by processor

192 GB

Maximum resolution

4096 x 2304 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel Z790

Motherboard chipset family

Intel

Motherboard form factor

ATX

mSATA ports quantity

0

Number of battery cells

1

Number of HDDs supported

6

Number of M.2 (M) slots

4

Number of memory slots

4

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

6

Number of storage drives supported

10

On-board graphics card

No

Package depth

270 mm

Package height

80 mm

Package weight

2.32 kg

Package width

335 mm

Parallel processing technology support

Crossfire

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x16 slots

3

Processor manufacturer

Intel

Processor socket

LGA 1700

Product colour

Black

Products per shipping (inner) case

1 pc(s)

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out port

Yes

Supported memory clock speed (max)

7600 MHz

Supported memory clock speeds

7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1700

Supported storage drive interfaces

M.2, PCI Express 4.0, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Thunderbolt headers

2

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Total number of SATA connectors

6

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB connector type

USB Type-A, USB Type-C

VGA (D-Sub) ports quantity

0

Warranty period

3 year(s)

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

EAN / GTIN

4719331849467
