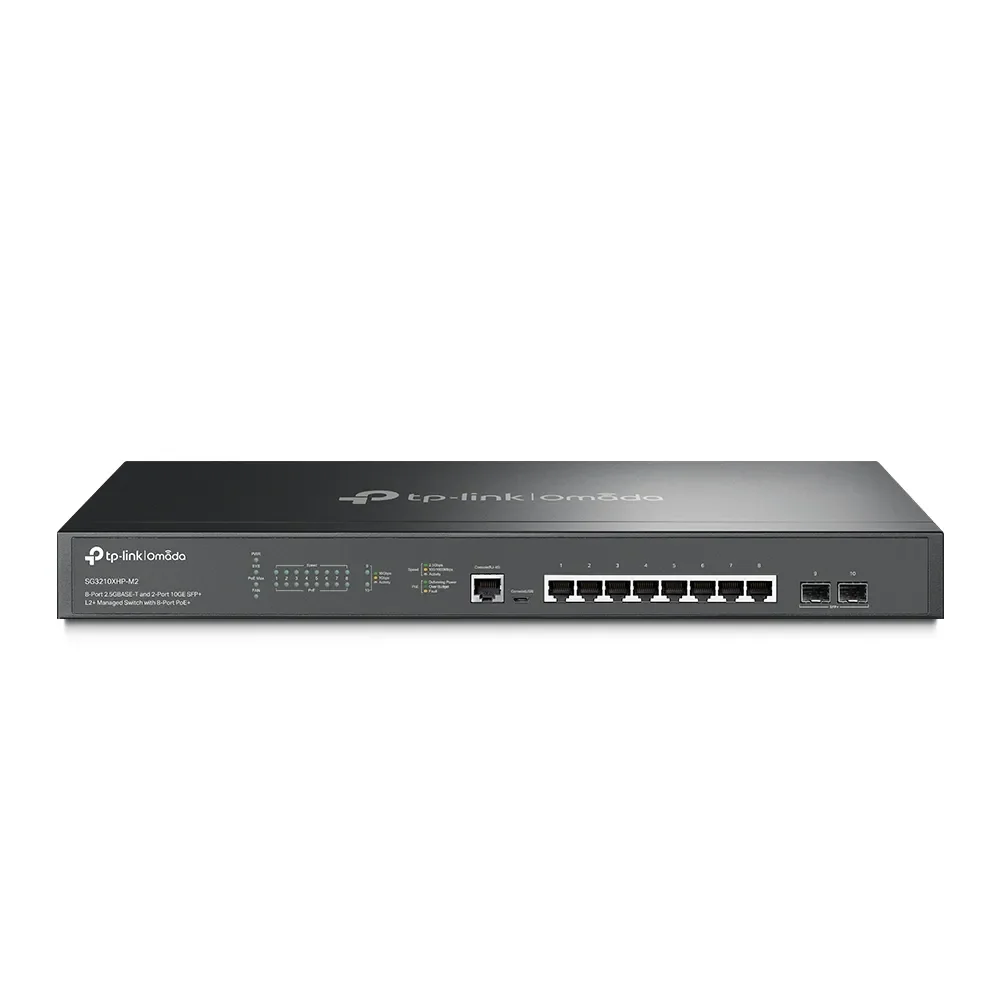

TP-Link JetStream TL-SG3210XHP-M2 - V1 - kytkin - 10 porttia - hallittava - telineeseen asennettava

Tekniset tiedot

10G support

Yes

2.5G Ethernet (copper) ports quantity

8

AC input frequency

50/60 Hz

AC input voltage

100 - 240 V

Access Control List (ACL)

Yes

ARP inspection

Yes

Authentication

MAC-based authentication, Port-based authentication

Authentication type

AAA, TACACS+

Basic switching RJ-45 Ethernet ports quantity

8

Basic switching RJ-45 Ethernet ports type

2.5G Ethernet (100/1000/2500)

BPDU filtering/protection

Yes

Broadcast storm control

Yes

Cables included

AC

Certification

CE, FCC, RoHS

Cloud-managed

Yes

Configuring Location Settings (CLI)

Yes

Console port

RJ-45/micro-USB

Depth

180 mm

DHCP features

DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping

Ethernet LAN data rates

100,1000,2500 Mbit/s

Flow control support

Yes

Form factor

1U

Forwarding rate

59.52 Mpps

GARP VLAN Registration Protocol (GVRP)

Yes

Head-of-line (HOL) blocking

Yes

Heat dissipation

975.54 BTU/h

Height

44 mm

IGMP snooping

Yes

Installed SFP modules quantity

0

Installed SFP+ modules quantity

0

IP-MAC-Port binding

Yes

IP routing

Yes

Jumbo frames

9000

Jumbo frames support

Yes

LED indicators

Yes

Link aggregation

Yes

Loop protection

Yes

MAC address filtering

Yes

MAC address table

16000 entries

Mallinumero

SG3210XHPM2

Management protocols

SNMPv1/v2c/v3, SNTP

MIB support

RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Multicast Listener Discovery (MLD) snooping

Y

Multicast support

Yes

Networking standards

IEEE 802.1D, IEEE 802.1s, IEEE 802.1w

Number of fans

2 fan(s)

Number of IP interfaces

16

Number of static routes

48

Number of VLANs

4000

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 45 °C

Package type

Box

Packet buffer memory

12 MB

Password protection

Yes

Port mirroring

Yes

Power connector

AC-in jack

Power consumption (max)

285.9 W

Power over Ethernet (PoE)

Yes

Power over Ethernet (PoE) power per port

30 W

Power over Ethernet plus (PoE+) ports quantity

8

Power source

AC

Power supply included

Yes

Product colour

Black

Quality of Service (QoS) support

Yes

Queue scheduling algorithms

SP, WRR+SP, Weighted Round Robin (WRR)

Quick start guide

Yes

Rack mounting

Yes

Rate limiting

Yes

Security algorithms

HTTPS, SSH, SSH-2, SSL/TLS

SFP+ module slots quantity

2

Spanning tree protocol

Yes

SSH/SSL support

Yes

Static port security

Yes

Static route

Yes

Storage relative humidity (H-H)

5 - 90%

Storage temperature (T-T)

-40 - 70 °C

Switch layer

L2+

Switch type

Managed

Switching capacity

80 Gbit/s

System event log

Yes

Total Power over Ethernet (PoE) budget

240 W

Traffic classification

Yes

Väri

Black

Virtual LAN features

MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN

VLAN support

Yes

Web-based management

Yes

Width

440 mm

EAN / GTIN

6935364030797
