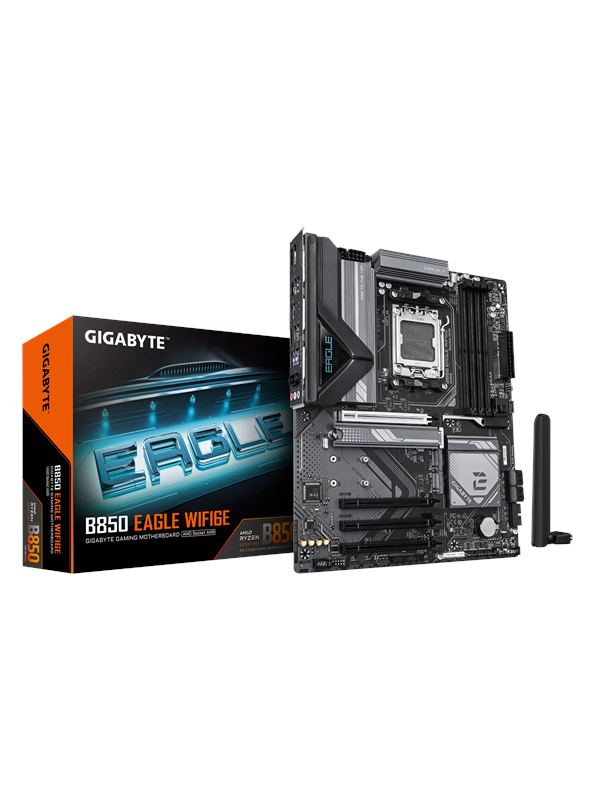

Gigabyte B850 EAGLE WIFI6E AM5 ATX -emolevy

Specifications

12V power connector

Yes

1st M.2 highest PCI Express generation

5.0

1st M.2 largest key size

25110

2nd M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

3rd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

22110

ACPI version

5.0

Antenna included

Yes

ATX Power connector (24-pin)

Yes

Audio output channels

7.1 channels

Batteries included

Yes

Battery capacity

220 mAh

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.3

Bundled software

Norton Internet Security (OEM version) LAN bandwidth management software

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Component for

PC

Country of origin

China

CPU fan connector

Yes

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPort version

2.1

DisplayPorts quantity

1

DVI-D ports quantity

0

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

Lithium weight per battery

0.07 g

Mallinumero

B850EAGLEWIFI6E

Maximum internal memory

256 GB

Maximum internal memory per slot

64 GB

Maximum resolution

4096 x 2160 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

AMD B850

Motherboard chipset family

AMD

Motherboard form factor

ATX

mSATA ports quantity

0

Number of battery cells

1

Number of chassis fan connectors

3

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

1

Number of HDDs supported

4

Number of M.2 (M) slots

3

Number of memory slots

4

Number of RGB LED pin headers

4

Number of SATA connectors

0

Number of SATA II connectors

0

Number of SATA III connectors

4

Number of storage drives supported

7

Number of water pump connectors

2

Package depth

270 mm

Package height

80 mm

Package weight

1.93 kg

Package width

335 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x16 (Gen 3.x) slots

3

PCI Express x16 (Gen 5.x) slots

1

Peripheral (Molex) power connectors (4-pin)

1

Power source type

ATX

Processor manufacturer

AMD

Processor socket

Socket AM5

Product colour

Brown

Products per shipping (inner) case

1 pc(s)

RAID levels

0, 1, 10

RAID support

Yes

RGB LED pin header

Yes

Screws included

Yes

Serial port headers

1

Supported memory clock speed (max)

8200 MHz

Supported memory clock speeds

4400,4800,5200,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200 MHz

Supported memory types

DDR5-SDRAM

Supported processor sockets

Socket AM5

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Total number of SATA connectors

4

TPM connector

Yes

Unbuffered memory

Yes

EAN / GTIN

4719331866587
