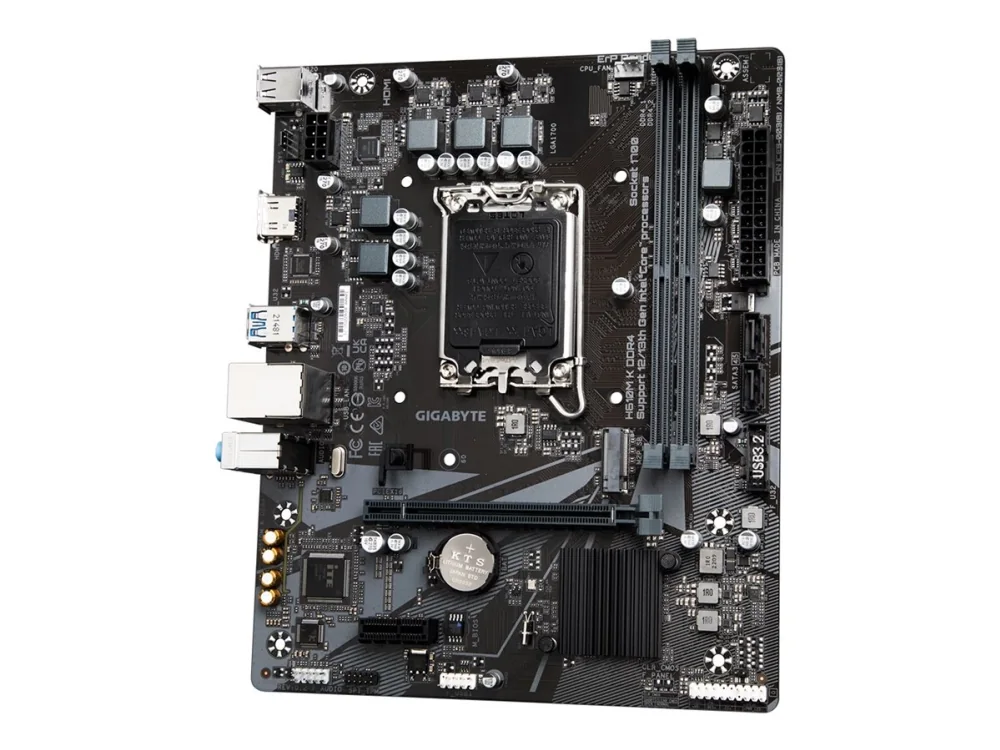

GIGABYTE H610M K DDR4 Emolevy - Intel H610 - Intel LGA1700 - DDR4 RAM - Micro-ATX

Specifications

12V power connector

Yes

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC897

Audio connector

Yes

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

128 Mbit

BIOS type

UEFI AMI

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Cables included

SATA

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Compatible processor series

Intel® Celeron®, Intel® CoreTM i3, Intel® CoreTM i7, Intel® CoreTM i9, Intel® Pentium® Gold

Component for

PC

Country of origin

China

CPU fan connector

Yes

Depth

185 mm

Desktop Management Interface (DMI) version

2.7

DVI-D ports quantity

0

ECC сompatibility

ECC & Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Front panel audio connector

Yes

Front panel connector

Yes

HDCP

Yes

HDMI ports quantity

1

HDMI version

2.1

Headphone outputs

1

Height

35 mm

LAN controller

Realtek RTL8111H

Line-in

Yes

Lithium weight per battery

0.07 g

Mallinumero

H610MKDDR4

Maximum internal memory

64 GB

Maximum number of SMP processors

1

Maximum RDIMM memory

64 GB

Maximum resolution

4096 x 2160 pixels

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel H610 Express

Motherboard chipset family

Intel

Motherboard form factor

micro ATX

Number of battery cells

1

Number of chassis fan connectors

1

Number of EATX power connectors

1

Number of HDDs supported

2

Number of M.2 (M) slots

1

Number of memory slots

2

Number of SATA III connectors

2

Number of storage drives supported

3

Package depth

235 mm

Package height

52 mm

Package weight

717 g

Package width

265 mm

Parallel processing technology support

Not supported

PC health monitoring

Fan, Temperature, Voltage, Water cooling

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

Power fan connector

Yes

Power source type

ATX

Processor manufacturer

Intel

Processor socket

LGA 1700

Product colour

Brown

Products per shipping (inner) case

1 pc(s)

Supported memory clock speed (max)

3200 MHz

Supported memory clock speeds

2133,2400,2666,2933,3000,3200 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB

Supported memory types

DDR4-SDRAM

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Total number of SATA connectors

2

TPM connector

Yes

Unbuffered memory

Yes

USB 2.0 connectors

1

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB connector type

USB Type-A

VGA (D-Sub) ports quantity

0

Warranty period

3 year(s)

Wi-Fi

No

Width

226 mm

Windows operating systems supported

Windows 10 x64, Windows 11 x64

EAN / GTIN

4719331851675
