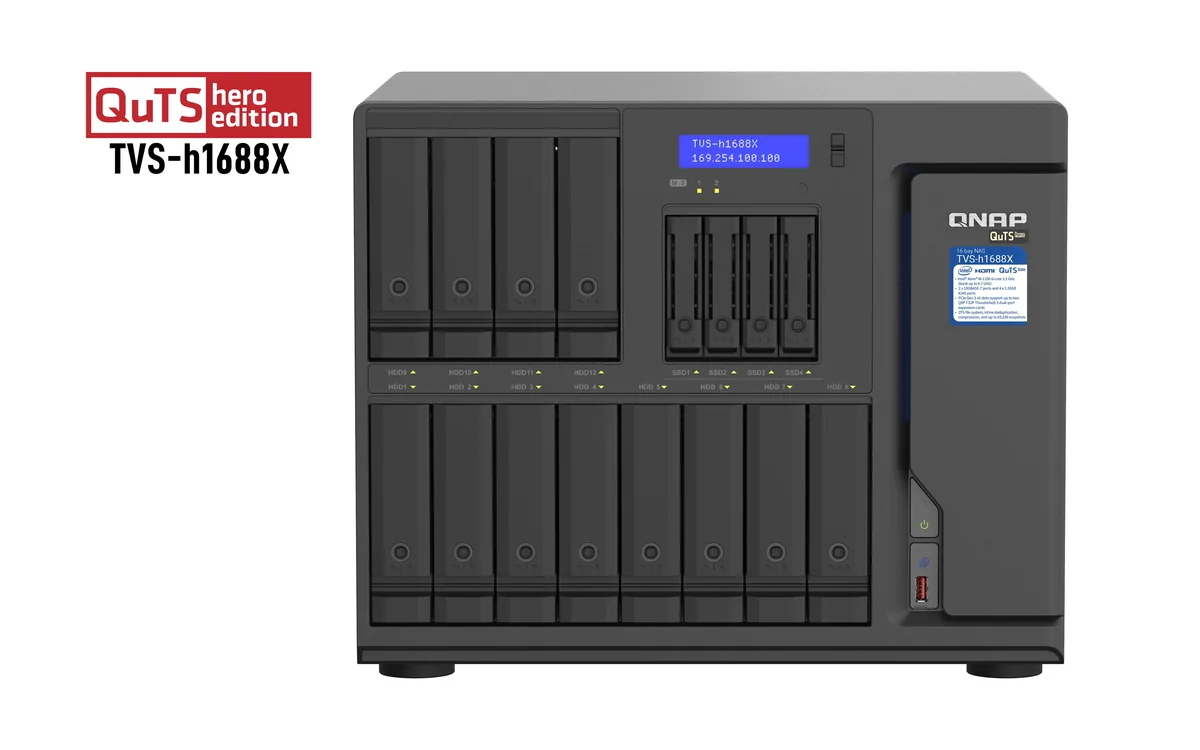

Qnap Tvs-h1688x

Specifications

AC input voltage

100 - 240 V

Access Control List (ACL)

Yes

Backup function

Yes

Browser supported

Apple Safari, Google Chrome, Internet Explorer, Mozilla Firefox

Built-in display

Yes

Built-in FTP server

Yes

Buzzer

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Cables included

AC, LAN (RJ-45)

Chassis type

Tower

Concurrent connections

10000

Cooling type

Active

Copper ethernet cabling technology

10GBASE-T

CPU configuration (max)

1

Depth

324.1 mm

Device class

Small & Medium Business

DHCP client

Yes

DHCP server

Yes

Disk roaming

Yes

Display type

LCD

Drive tray key included

Yes

Dynamic DNS (DDNS)

Yes

ECC

Yes

Embedded options available

No

Enhanced Intel SpeedStep Technology

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

6

Ethernet LAN data rate supported (max)

10000 Mbit/s

Ethernet LAN data rates

100,1000,2500,10000 Mbit/s

Execute Disable Bit

Yes

Fan diameter

8 cm

Fan diameter 2

9.7 cm

Fan voltage

12 V

Flash memory

5000 MB

Harmonized System (HS) code

84714100

HDMI ports quantity

1

HDMI version

1.4b

Height

303.7 mm

Hot spare

Yes

Hot-swap drive bays

Yes

Idle States

Yes

Installed storage drive type

No

Intel 64

Yes

Intel Clear Video Technology

Yes

Intel Trusted Execution Technology

Yes

Intel Virtualization Technology (VT-x)

Yes

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel VT-x with Extended Page Tables (EPT)

Yes

Internal memory

32 GB

Internal memory type

DDR4

iSCSI support

Yes

Jumbo frames support

Yes

LED indicators

HDD, LAN, SSD, System, USB

Link aggregation

Yes

Linux operating systems supported

CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04, Ubuntu 16.10, Ubuntu 17.10, Ubuntu 18.04 LTS, Ubuntu 20.04 LTS

Load balancing system

Yes

Mac operating systems supported

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur

Mallinumero

TVSH1688XW125032G

Maximum RAM supported

128 GB

Memory form factor

UDIMM

Memory slots

4

Multilingual support

Yes

Noise level

25.8 dB

Number of fans

5 fan(s)

Number of M.2 (M & B) slots

2

Number of power supply units

1

Number of screws

72

Number of storage drives installed

0

Number of storage drives supported

16

On-board graphics card model

Intel UHD Graphics P630

On/off switch

Yes

Online RAID expansion

Yes

Online RAID migration

Yes

Operating relative humidity (H-H)

5 - 95%

Operating system installed

QuTS hero

Operating system version

h5.0.0

Operating temperature (T-T)

0 - 40 °C

Other operating systems supported

IBM AIX 7.1, IBM AIX 7.2, Solaris 10, Solaris 11

Package depth

455 mm

Package height

482 mm

Package type

Box

Package weight

16.3 kg

Package width

430 mm

PCI Express x4 (Gen 3.x) slots

2

PCI Express x8 (Gen 3.x) slots

1

Power cables quantity

1

Power consumption (sleep)

91.26 W

Power consumption (typical)

108.67 W

Power supply location

Built-in

Power supply unit (PSU) capacity

550 W

Processor boost frequency

4.7 GHz

Processor cache

12 MB

Processor cores

6

Processor family

Intel® Xeon®

Processor frequency

3.3 GHz

Processor manufacturer

Intel

Processor model

W-1250

Processor threads

12

Product colour

Black

EAN / GTIN

4713213518403
