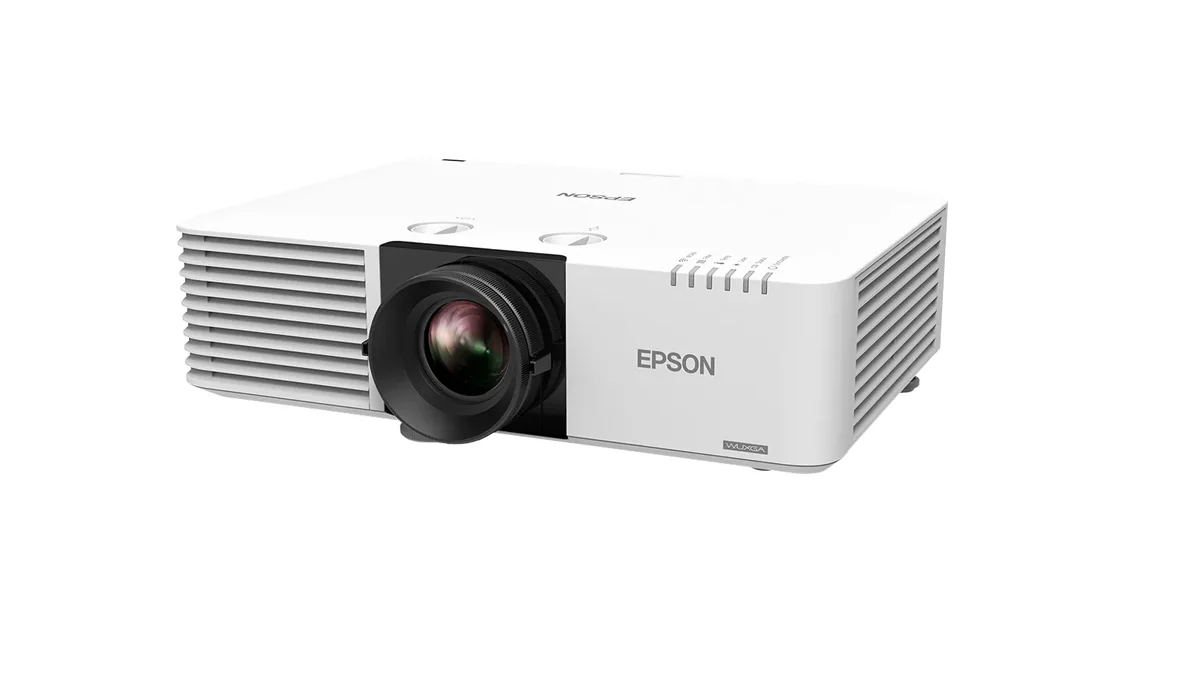

Epson Eb-l530u Wuxga Laser

Specifications

AC (power) in

Yes

AC input frequency

50 - 60 Hz

AC input voltage

100 - 240 V

Aperture range (F-F)

1.5 - 1.7

Audio (L/R) in

0

Batteries included

Yes

Box contents

Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents

Built-in display

No

Built-in speaker(s)

Yes

Cable lock slot

Yes

Cable lock slot type

Kensington

Cables included

AC

Card reader integrated

No

Colour modes (2D)

Cinema, Dynamic

Component video (YPbPr/YCbCr) in

0

Composite video in

0

Contrast ratio (dynamic)

5000000:1

Contrast ratio (typical)

2500000:1

Control panel

0.67 inch with C2 Fine

Country of origin

Philippines

Depth

339 mm

DVI port

No

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Focal length range

20 - 31.8 mm

Focus

Manual

Full HD

Yes

Harmonized System (HS) code

85286200

HDBaseT port

Yes

HDCP

Yes

HDMI connector type

Full-size

HDMI ports quantity

3

Height

136 mm

Horizontal lens shift range

-20 - -20%

Interactive

No

Interface

USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback

Keystone correction, horizontal

±30°

Keystone correction, vertical

±30°

Light source type

Laser

Mallinumero

V11HA27040

Manual

Yes

Market positioning

Presentation

Matrix size

1.7 cm (0.67")

Miracast

Yes

Mobile app support

Yes

Native aspect ratio

16:10

Noise level

31 dB

Noise level (economic mode)

23 dB

Number of built-in speakers

1

Number of colours

1.07 billion colours

Operating relative humidity (H-H)

20 - 80%

Option type

Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit

Other features

21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App

Package depth

565 mm

Package height

210 mm

Package weight

12 kg

Package width

540 mm

Pallet gross weight

0 g

Pallet weight (UK)

0 g

Password protection

Yes

PC Audio in

Yes

PC Audio out

Yes

Placement

Ceiling, Desktop

Power consumption

234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-mode), 223 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby)

Power consumption (economy mode)

223 W

Power consumption (standby)

0.3 W

Power consumption (typical)

293 W

Power source

AC

Product colour

White

Product type

Standard throw projector

Products per pallet

14 pc(s)

Products per pallet (UK)

14 pc(s)

Projection distance

1.44 - 23.84 m

Projection distance (tele)

2.4 - 23.8 m

Projection distance (wide)

1.4 - 14.8 m

Projection technology

3LCD

Projector brightness

5200 ANSI lumens

Projector brightness (economic mode)

3640 ANSI lumens

Projector native resolution

WUXGA (1920x1200)

Quantity per pack

1 pc(s)

Remote control included

Yes

RMS rated power

10 W

Screen size compatibility

1270 - 12700 mm (50 - 500")

Security features

Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection

Serial interface type

RS-232C

Service life of light source

20000 h

Service life of light source (economic mode)

30000 h

Smart projector

No

Smart TV

No

Software support

via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

Storage relative humidity (H-H)

10 - 90%

Storage temperature (T-T)

-10 - 60 °C

Supported network protocols

HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Sustainability certificates

TCO

Throw ratio

1.35 - 2.20:1

USB 2.0 ports quantity

2

USB 2.0 Type-B ports quantity

1

Vertical lens shift range

-50 - -50%

VGA (D-Sub) ports quantity

2

Video colour modes

Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

EAN / GTIN

8715946695334
