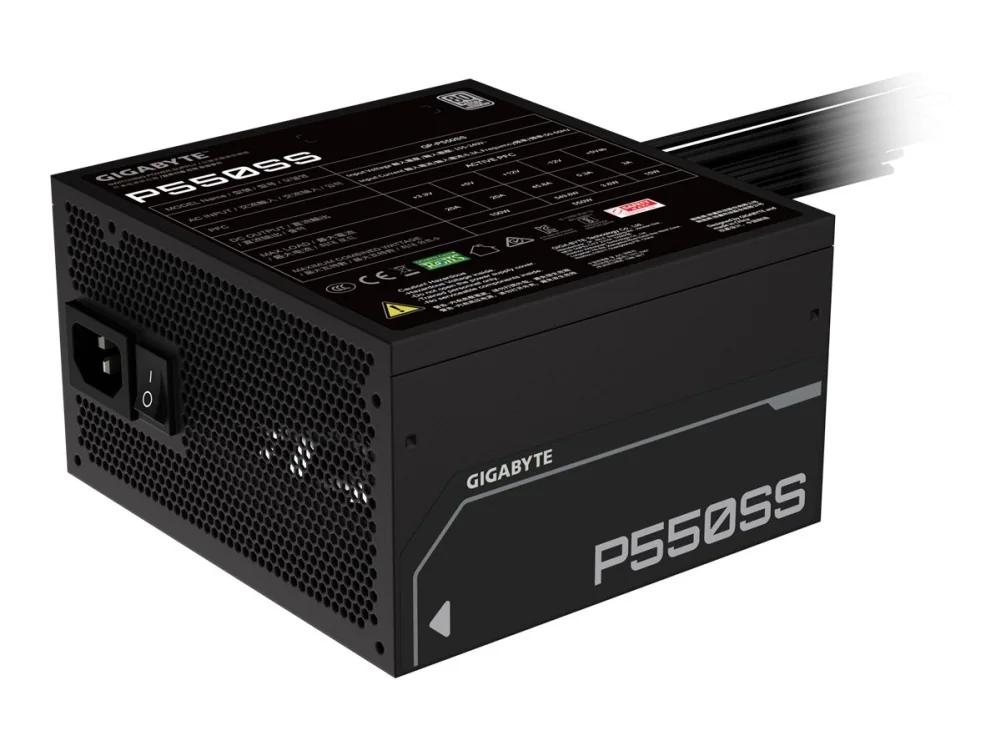

GIGABYTE P550SS, 550 W, 155-240 V, 50/60 Hz, 6,3 A, aktiivinen, 100 W

Specifications

80 PLUS certification

80 PLUS Silver

AC input frequency

50/60 Hz

AC input voltage

155-240 V

ATX power connector (20+4 pin)

Yes

ATX version

3.1

Bearing technology

Ball bearing

Cabling type

Non-Modular

Combined power (-12V)

3.6 W

Combined power (+12V)

549.6 W

Combined power (+3.3V)

100 W

Combined power (+5V)

100 W

Combined power (+5Vsb)

15 W

Cooling type

Active

CPU power connector (4+4 pin)

Yes

Depth

150 mm

Efficiency

90%

Fan diameter

12 cm

Fan location

Top

Floppy disk drive connector

Yes

Floppy drive power connector

2

Height

86 mm

Hold time

16 ms

Input current

6.3 A

Mallinumero

GPP550SS

Max output current (-12V)

0.3 A

Max output current (+12V)

45.8 A

Max output current (+3.3V)

20 A

Max output current (+5V)

20 A

Max output current (+5Vsb)

3 A

Mean time between failures (MTBF)

100000 h

Motherboard power cable length

60 cm

Motherboard power connector

20+4 pin ATX

Number of fans

1 fan(s)

Number of SATA power connectors

5

On/off switch

Yes

Package depth

206 mm

Package height

117 mm

Package type

Box

Package weight

2.32 kg

Package width

254 mm

PCI Express connector

Yes

PCI Express power connectors (6+2 pin)

2

Peripheral (Molex) power connectors (4-pin)

4

Power Factor Correction (PFC) type

Active

Power Good signal delay range

100 - 150 ms

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Power supply unit (PSU) form factor

ATX

Product colour

Black

Purpose

PC

Total power

550 W

Warranty period

3 year(s)

Weight

1.86 kg

Width

140 mm

EAN / GTIN

4719331554187
