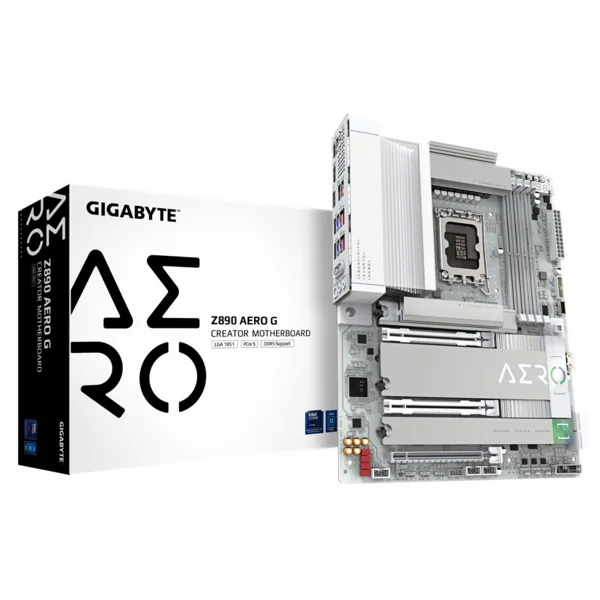

Gigabyte Z890 AERO G WiFi 7 LGA1851 ATX -emolevy

Specifications

12V power connector

Yes

ACPI version

5.0

ATX Power connector (24-pin)

Yes

Audio chip

Realtek ALC1220

Audio output channels

7.1 channels

Batteries included

Yes

Battery technology

Lithium-Manganese Dioxide (LiMnO2)

Battery type

CR2032

Battery weight

3 g

BIOS memory size

256 Mbit

BIOS type

UEFI AMI

Bluetooth

Yes

Bluetooth version

5.4

Bundled software

Norton® Internet Security (OEM version) LAN bandwidth management software

Clear CMOS button

Yes

Clear CMOS jumper

Yes

Compatible processor series

Intel Core Ultra (Series 2)

Component for

PC

Country of origin

China

Depth

244 mm

Desktop Management Interface (DMI) version

2.7

DirectX version

12.0

DisplayPorts quantity

2

DVI-D ports quantity

0

ECC сompatibility

Non-ECC

EPS power connector (8-pin)

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

HDMI ports quantity

1

Height

35 mm

Lithium weight per battery

0.07 g

Mallinumero

Z890AEROG

Maximum internal memory

256 GB

Memory channels

Dual-channel

Memory slots type

DIMM

Microphone in

Yes

Motherboard chipset

Intel Z890 Express

Motherboard chipset family

Intel

Motherboard form factor

ATX

Number of battery cells

1

Number of HDDs supported

9

Number of M.2 (M) slots

5

Number of memory slots

4

Number of SATA III connectors

4

Number of storage drives supported

4

Package depth

270 mm

Package height

80 mm

Package weight

2.61 kg

Package width

335 mm

PC health monitoring

Fan, Temperature, Voltage

Processor manufacturer

Intel

Processor socket

LGA 1851 (Socket V1)

Product colour

White

Products per shipping (inner) case

1 pc(s)

RAID levels

0, 1, 5, 10

RAID support

Yes

RGB LED pin header

Yes

S/PDIF out port

Yes

Supported memory clock speed (max)

8800 MHz

Supported memory clock speeds

5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,8800 MHz

Supported memory module capacities

1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB

Supported memory types

DDR5-SDRAM

Supported processor sockets

LGA 1851

Supported storage drive interfaces

M.2, SATA III

Supported storage drive types

HDD & SSD

System Management BIOS (SMBIOS) version

2.7

Thunderbolt ports quantity

1

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Total number of SATA connectors

4

TPM connector

Yes

USB 2.0 connectors

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 3.2 Gen 2x2 connectors

1

VGA (D-Sub) ports quantity

0

Warranty period

3 year(s)

Weight

2.29 kg

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)

Width

305 mm

WLAN controller model

Intel Wi-Fi 7 BE202

EAN / GTIN

4719331865139
